CROSAL PLUS
CROSAL®-plus is eifeler’s next generation AICrN based hard coating.
The new coating system is an advanced development of our well-established CROSAL® coating. As a result of optimized process parameters and a tailor-made coating microstructure this versatile high-performance coating covers all key requirements:
- High oxidation resistance.
- Outstanding hot hardness.
- Excellent coating adhesion.

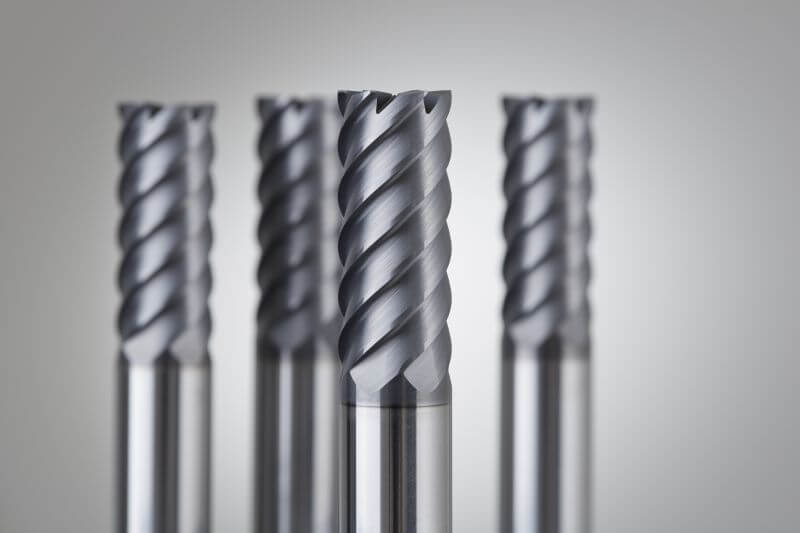

Your plus in metal cutting
CROSAL®-plus is perfectly suited for challenging applications within the fields of dry cutting, punching and forming.
Applications
CROSAL®-plus is especially suited for the following applications:
Cutting
- High-performance cutting.
- Hobbing
- Dry broaching
Stamping/Forming
- Fine blanking
- Hot pressing
- Al die casting
In Numbers
Hardness: 3.200 ± 300 HV
Max. temperature of operation: 1100 °C / 2012 °F
Coefficient of friction against steel: 0.45
Coating thickness: 2-5 μm
Color: slate-grey
